F100 / F200

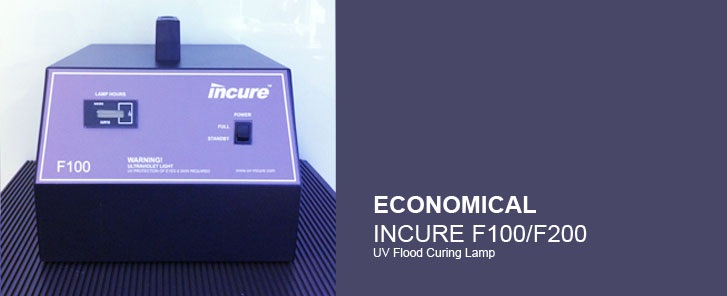

F100 / F200 Compact UV Flood Curing Lamp

• Auto-Range AC Line Input • Standby Mode • Elapsed Hour Meter • Forced Air Cooling

The INCURE F100 / 200 is a compact UV flood curing lamp. F100 / F200 integrates all system components into a small lamp head which can be easily mounted anywhere on a factory floor, with virtually no cabling or remote control boxes required. Just mount the head, connect the AC line cord, and start curing! The long life 400/600-Watt metal halide type lamp and parabolic reflector illuminate an 8 x 6 inch curing area with evenly distributed 100mW/cm2 UVA light (320–390nm). The arc lamp is powered by the state of the art UV Power-Plus Lamp Driver. The head features a convenient carrying handle and sliding height adjustment bracket.

Configuration	F100	F200
Order Number	290005	290033
Input Voltage	90-132/180-265VAC	90-132/180-265VAC
Input Current, 120/240V	7A/3.5A maximum	10A/5.0A maximum
Source Input Frequency	47 Hz to 63 Hz	47 Hz to 63 Hz
Lamp Power Regulation	± 1%	± 1%
Fan / Auxiliary Voltage	24V	24V
Lamp Type	400 Watt Metal Halide	600 Watt Metal Halide
Burning Position	Horizontal	Horizontal
Radiation Flux	110 Watts	110 Watts
Warm-up Time	2 minutes	2 minutes
Cooling time before Restart	5 minutes typical	5 minutes typical
Curing Area	8 x 6’’ minimum	8 x 6’’ minimum
Lamp Life	1000 hours typical	1000 hours typical
Operating Temperature	+10°C to +40°C +50°F to +104°F	+10°C to +40°C  +50°F to +104°F
Relative Humidity	30 to 75% operating, 10 to 100% storage	30 to 75% operating, 10 to 100% storage
Cooling	Forced air	Forced air
L x W x H (inches)	11” x 10” x 9”	11” x 10” x 9”
Weight (lbs.)	13 Pounds	13 Pounds
